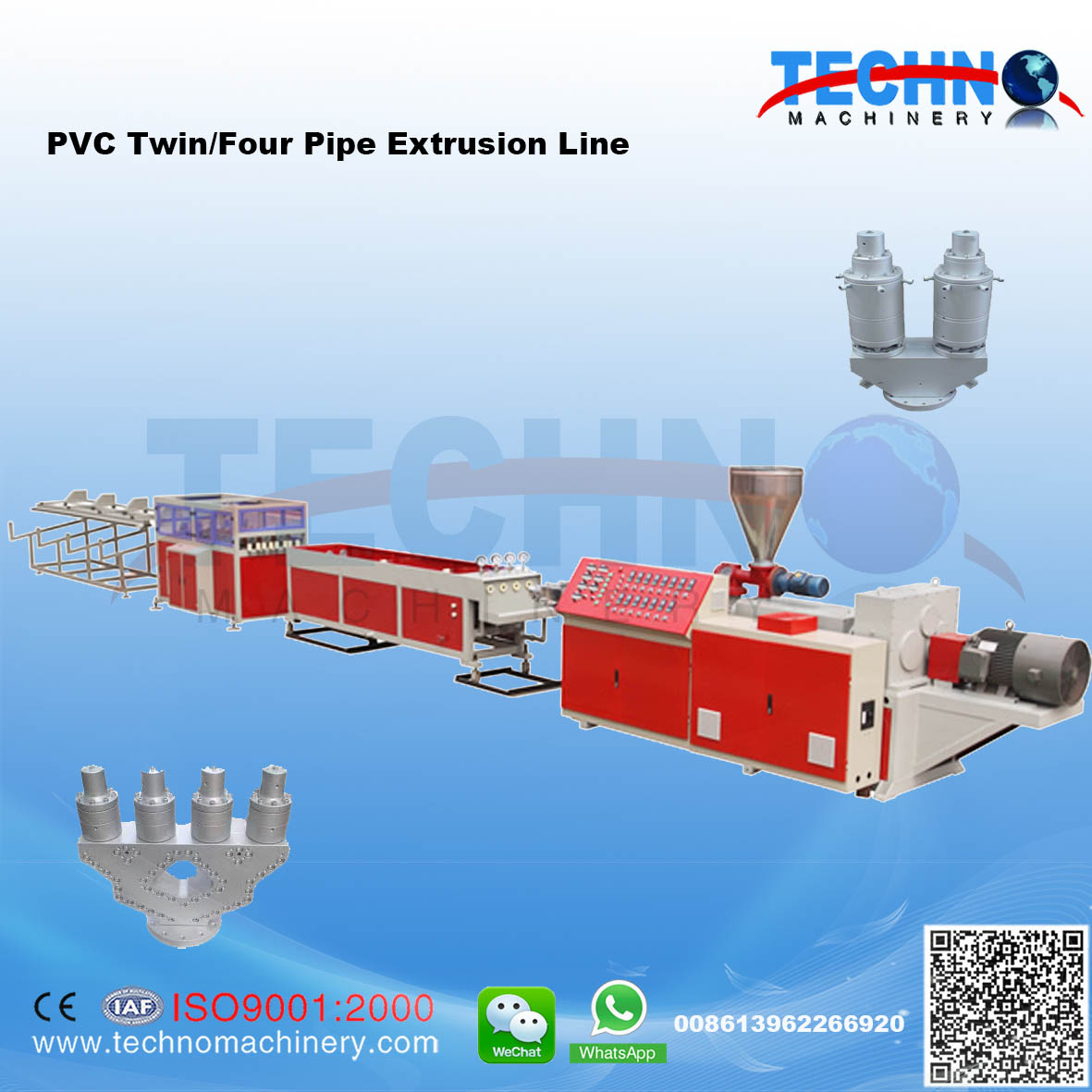

PVC Twin Pipe/Four Pipe Extrusion/Production Line

PVC Twin Pipe/Four Pipe Extrusion/Production Line


  • Thumbnail 1
  • Thumbnail 1
Tel:+0086-512-56795381
Fax:+0086-512-56795382





PVC Twin Pipe Extrusion Line/PVC Twin Pipe Production Line also known as Conical Twin Screw Extruder (Two Pipes) is an extrusion machinery that is made from high grade steel and is energy efficient for producing twin pipe of two different diameters at the same time from a single mould. With high production capacity of (125 kg/hr-250kg/hr) even for smaller pipes. PVC Twin Pipe Extrusion Line models are most SJSZ-51 and SJSZ-65

Product Description:

Conical Twin Screw Extruder (Two Pipes) or PVC Conduit Pipe Plant available in SJSZ 51/105 model and SJSZ65/132 are widely employed in fabricating rigid and plasticized PVC dry Compound Resins. It is technology enabled for producing a large number of small and big pipes within a very short period of time.



Features of PVC Twin Pipe Extrusion Line/PVC Twin Pipe Production Line(Dual Pipe)

Conical Twin Screw Extruder for PVC Twin Pipe is designed and is ideally suited for electrical piping systems and underground duct.

It can manufacture twin pipe in two different diameters form a single mould.

With efficiency of (125kg/hr-250Kg/hr) it produces even larger number of pipes even for smaller sizes.

This special conical twin screw extruder can take high filler loading in comparison to parallel twin screw extruder.

Counter rotating conical twin screw machines on CNC “WWW” make thread milling machines by simulation software for better performance.

Bi-metallic screw & barrel as a part of Conical Twin Screw Extruder provides 2-3 times more life in comparison to nitrided screw & barrel

High Speed PVC Twin Pipe Extrusion Line/PVC Twin Pipe Production Line/PVC Four Pipe Extrusion Line

Model
OD(mm)
Extruder
Max Output(KG/H)
Power(KW)
Length(m)
PVC-63X2
16-63
SJSZ65/132
250
60
20
PVC-110X2
50-110
SJSZ80/156
350
120
24
PVC-32X4
12-32
SJSZ65/132
250
             70
24
