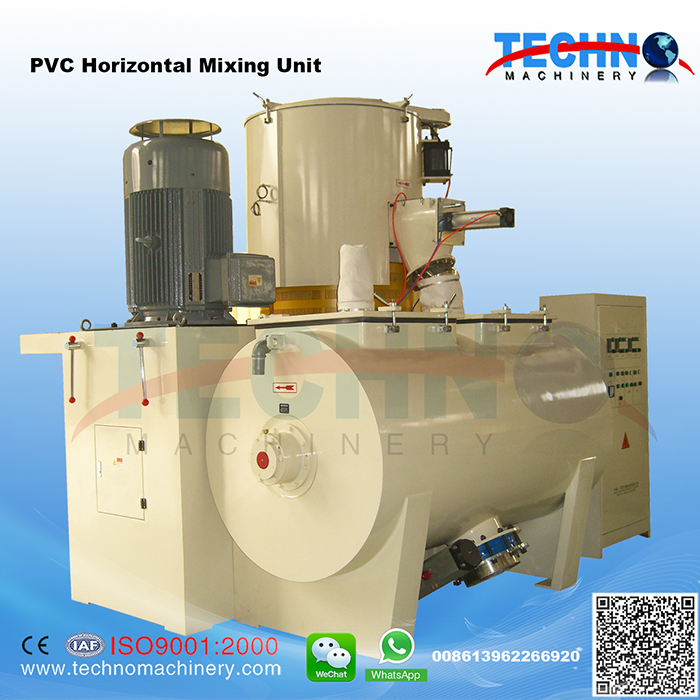

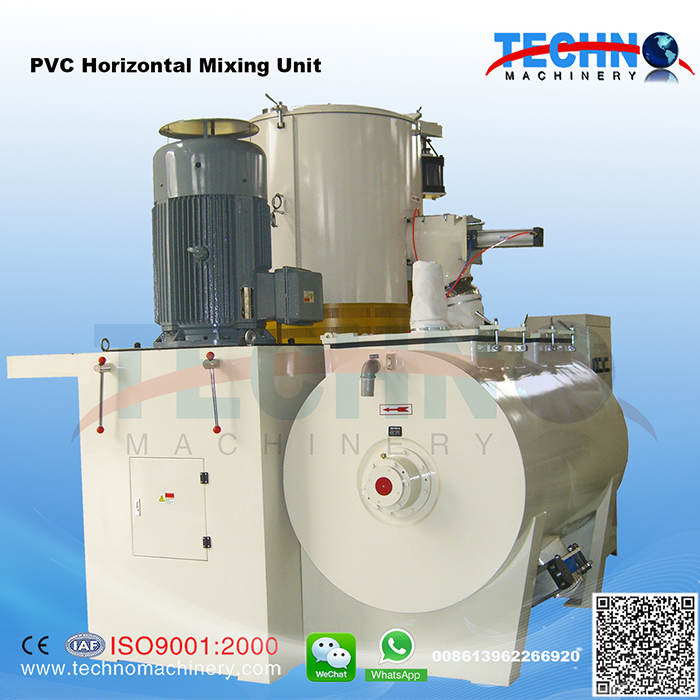

Techno SRL-W PVC Horizontal Mixing Unit is mainly for mixing PVC formulation , or any other plastic blend, coloring etc. It combines hot mixer with Drum Cooler. Normally the cooler size is 3 times than Hot mixer. The hot mixer blade can be 3 terrace style or round drum style according to the PVC formulation.
Horizontal Type PVC Compound Mixing Unit/PVC Mixer
|
Model
|
SRL-W500/1600
|
SRL-W800/2000
|
SRL-W800/2500
|
SRL-W800×2/4000
|
SRL-W1000/3500
|
|
Total Volume（L）
|
500/1600
|
800/2000
|
800/2500
|
1600/4000
|
1000/3500
|
|
Effective Volume（L）
|
330/1000
|
560/1400
|
600/1500
|
1120/2700
|
700/2500
|
|
Blade Speed（rpm）
|
430/860/70
|
330/660/55
|
330/660/60
|
350/700/65
|
350/700/50
|
|
Heating & Cooling
|
Electric Heating or Self Friction/Water Cooling
|
||||
|
Mixing Time（min）
|
8-12
|
8-12
|
8-12
|
8-12
|
8-12
|
|
Power（kw）
|
47/67/15
|
60/90/18.5
|
83/110/22
|
83/110×2/45
|
90/132/30
|
|
Discharging Method
|
Pneumatic
|
||||
